Vision laser welding machines
LOW-MAINTENANCE LASER WELDERS FOR SHOP OR ON-SITE USE
Request more information about the family of Vision Laser Welding machines
Get to know the Vision family of precision Laser Welders

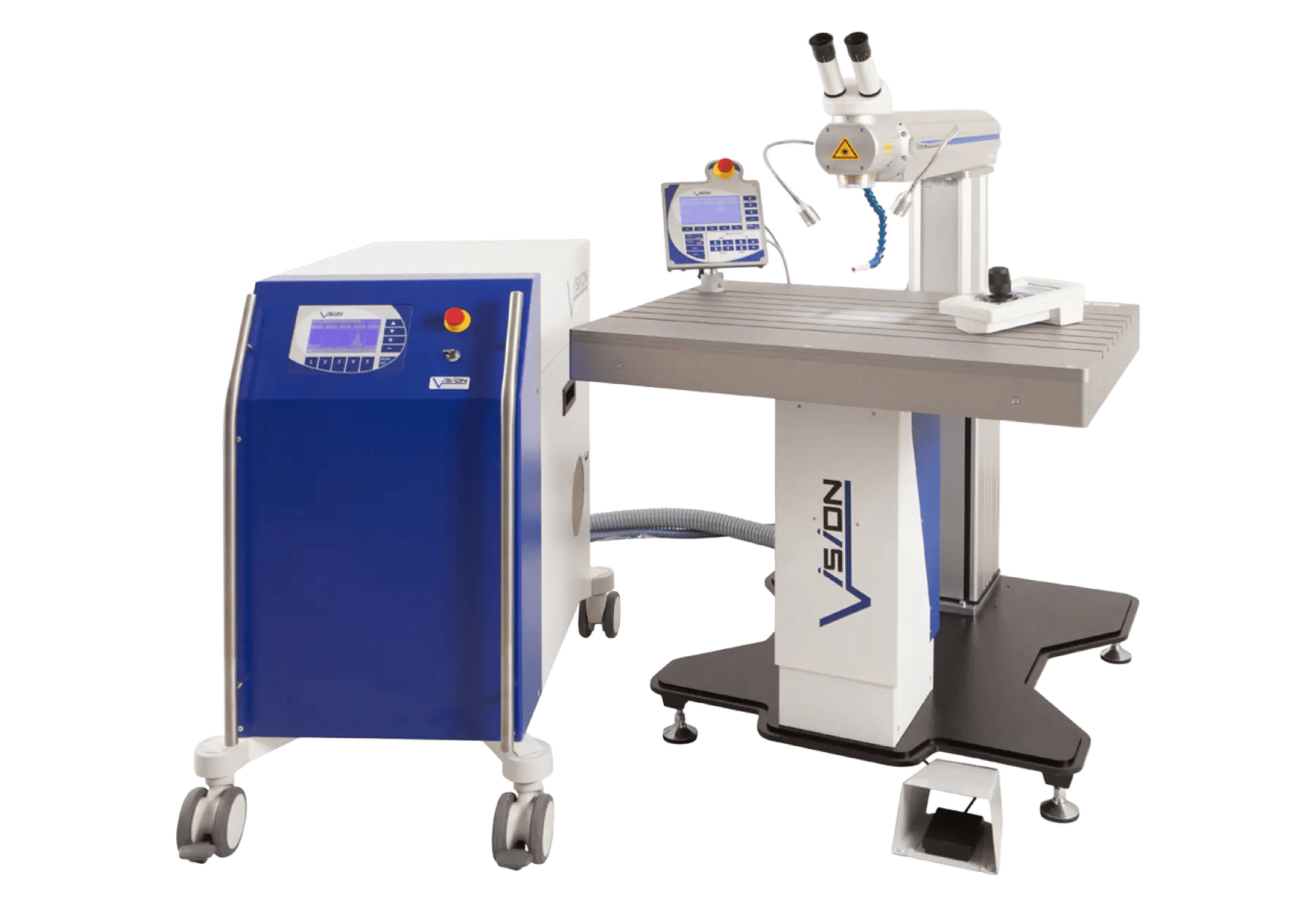

With the UNIX III, MobileFlexx, MobileFlexx II, MobileFlexx ToolRoom, and T-Base welding workstation, you’ll be prepared to repair any mold, anywhere, anytime.

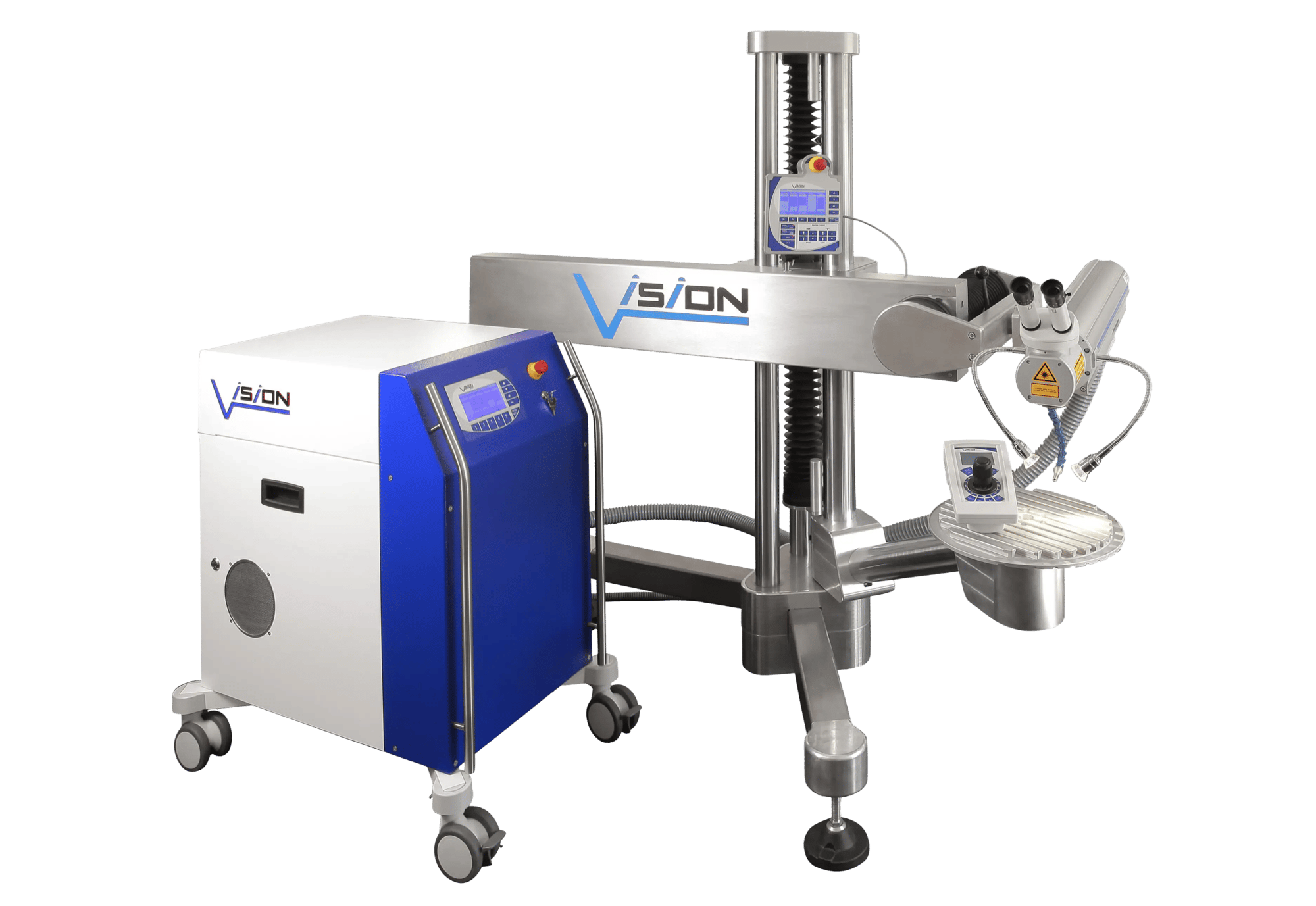

UNIXX III Laser Welding System
The UNIX III is an advanced laser welding and cutting system engineered for precision, versatility, and efficiency in mold repair. Designed to handle a wide range of component sizes and weights without repositioning, the Unixx III offers superior stability and ergonomic operation for high-precision laser work.
-
TECHNICAL DATA LWI V Nd: YAG 120 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 120 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 160-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-20 hz PULSE FILL 10 – 100 % PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY flexible nozzle, adjustable gas delay COOLING SYSTEM integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLING OPTION External cooler optional, integrated bypass-controller ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW -
TECHNICAL DATA LWI V Nd: YAG 150 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 150 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 160-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-20 hz PULSE FILL 10 – 100 % PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLING OPTION External cooler optional, integrated bypass-controller ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW -
TECHNICAL DATA LWI V Nd: YAG 200 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 200 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 200-500V PULSE WIDTH 1-30 ms PULSE FREQUENCY 1-30 hz PULSE FILL 10 – 100 % PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLING OPTION External cooler optional, integrated bypass-controller ELECTRICAL SUPPLY 3 phases, 400V/50 hz POWER CONSUMPTION 4 kW -
TECHNICAL DATA LWI V Nd: YAG 300 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 300 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 200-700V PULSE WIDTH 1-30 ms PULSE FREQUENCY 1-30 hz PULSE FILL 10 – 100 % PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLING OPTION External cooler optional, integrated bypass-controller ELECTRICAL SUPPLY 3 phases, 400V/50 hz POWER CONSUMPTION 4 kW -
TECHNICAL DATA LWI V: FSS 150 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 15 joule MAX. PEAK POWER 1,5 kW MAX. AVERAGE POWER 150 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLING OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 800 W -
TECHNICAL DATA LWI V: FSS 300 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 30 joule MAX. PEAK POWER 3 kW MAX. AVERAGE POWER 300 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1 – 100 % FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLING OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 1,2 kW

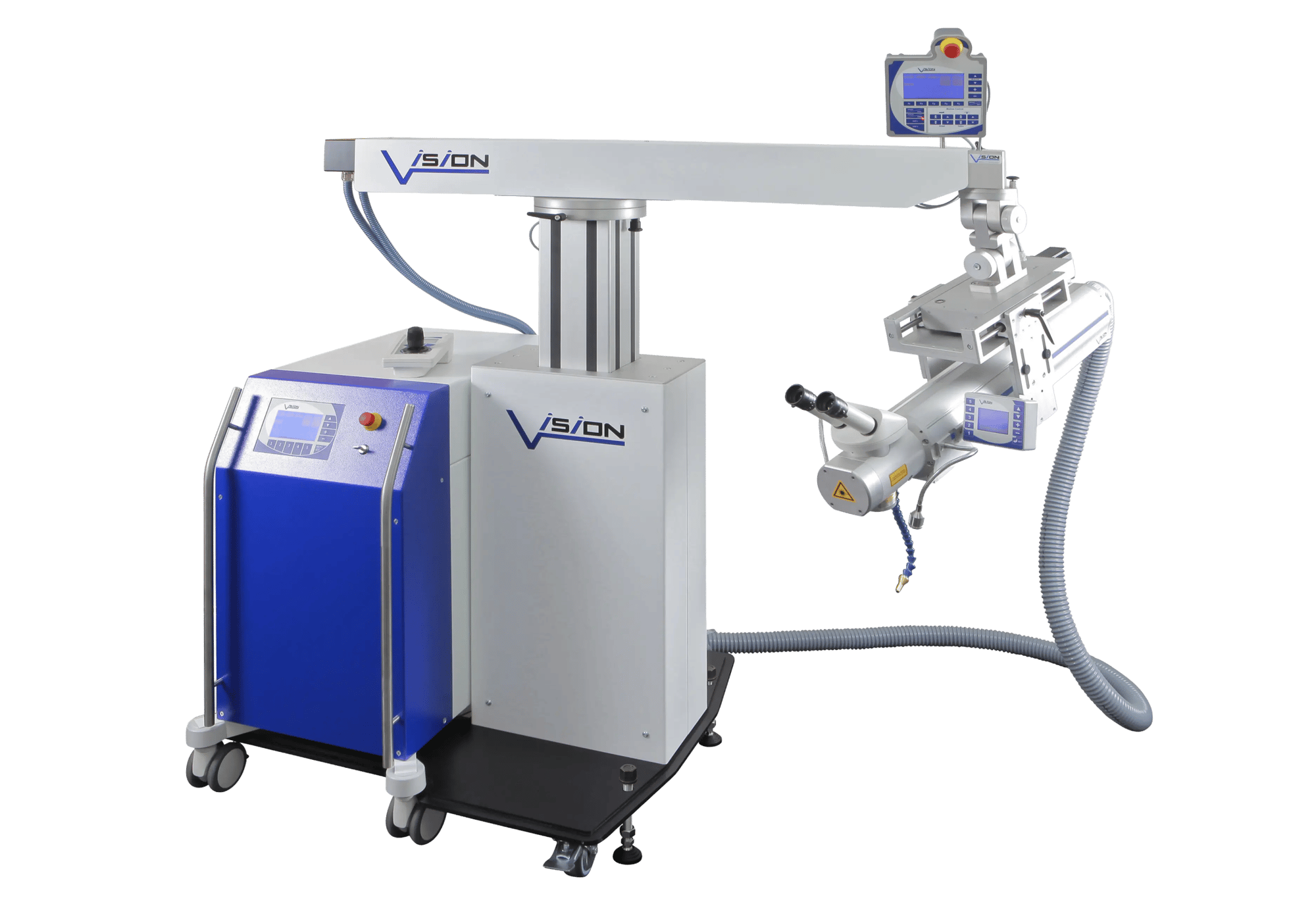

MobileFlexx Laser Welder
Engineered with an adjustable pulse for optimized welds on materials like tool steel, stainless steel, carbon steel, titanium, aluminum, and nickel, the MobileFlexx laser welder is the mobile mold repair solution for today’s fast-paced production environments.
-
TECHNICAL DATA LWI V Nd: YAG 120 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 120 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 160-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-20 hz PULSE FILL 10 – 100 % PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW DIMENSIONS 1487mm x 955mm x 790mm -
TECHNICAL DATA LWI V Nd: YAG 150 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 150 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 160-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-20 hz PULSE FILL 10 – 100 % PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW DIMENSIONS 1487mm x 955mm x 790mm -
TECHNICAL DATA LWI V Nd: YAG 200 W LASER SAFETY CLASS 4 BEAM SOURCE Nd:YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 200 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 200-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-30 hz PULSE FILL 10 – 100 % PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW DIMENSIONS 1487mm x 955mm x 790mm -
TECHNICAL DATA LWI V Nd: YAG 200 W LASER SAFETY CLASS 4 BEAM SOURCE Nd: YAG, Flashlamp, Pulsed WAVELENGTH 1064 nm MAX. PULSE ENERGY 70 joule MAX. PEAK POWER 17 kW MAX. AVERAGE POWER 300 W ENERGY ADJ MODE Voltage or PWM Mode VOLTAGE 200-500V PULSE WIDTH 1-20 ms PULSE FREQUENCY 1-30 hz PULSE FILL 10 – 100 % PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 200 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, water/air heat-exchanger, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 3 phases, 400V /50 hz POWER CONSUMPTION 4 kW DIMENSIONS 1487mm x 955mm x 790mm

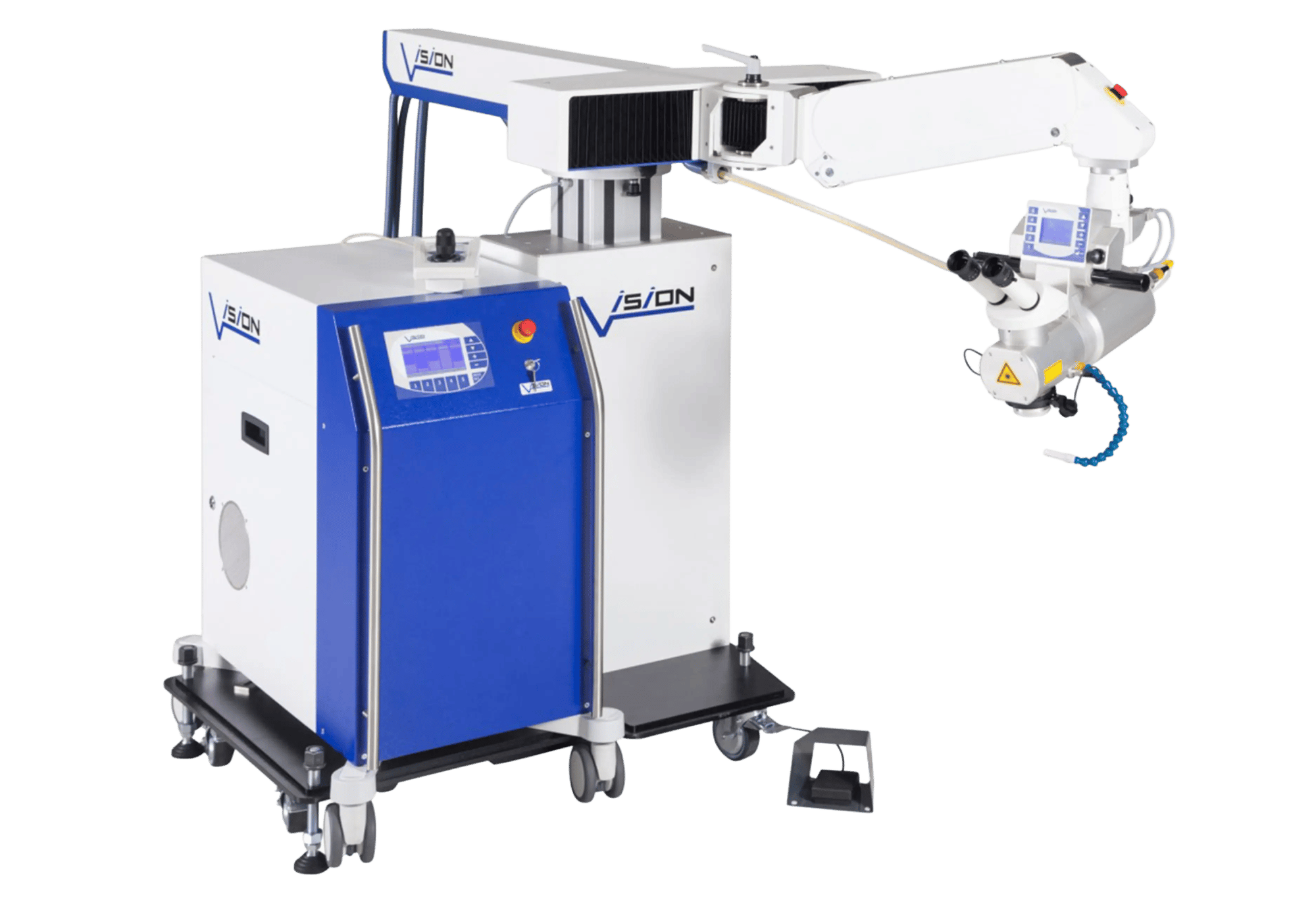

MobileFlexx II Laser Welder
Designed with the same mobility, flexibility, and precision as the MobileFlexx machine, the MobileFlexx II uses FSS Diode pump to produce the laser, virtually eliminating maintenance intervals and costs. Designed for both in-shop and on-site applications, the MobileFlexx II empowers fabricators and mold shops to tackle complex laser welding tasks with confidence and control.
-
TECHNICAL DATA LWI V Nd: FSS 150 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 15 joule MAX. PEAK POWER 1,5 kW MAX. AVERAGE POWER 150 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 800 W DIMENSIONS 1487mm x 955mm x 790mm -
TECHNICAL DATA LWI V Nd: FSS 300 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 30 joule MAX. PEAK POWER 30 kW MAX. AVERAGE POWER 300 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 1,2 kW DIMENSIONS 1487mm x 955mm x 790mm -
TECHNICAL DATA LWI V Nd: FSS 450 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 40 joule MAX. PEAK POWER 4.5 kW MAX. AVERAGE POWER 450 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 1,2 kW DIMENSIONS 1487mm x 955mm x 790mm

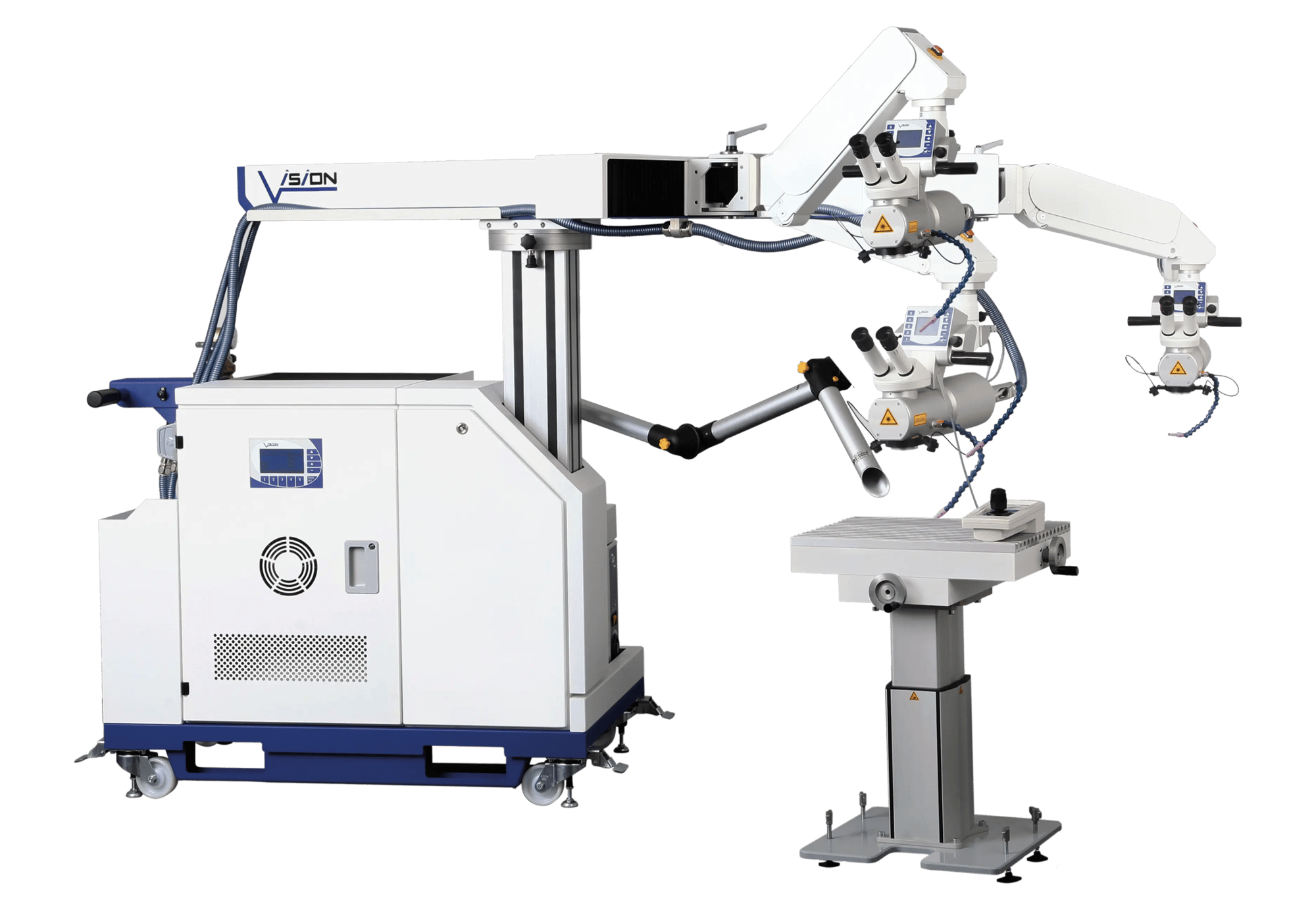

MobileFlexx ToolRoom
The MobileFlexx Toolroom is a comprehensive weld workstation that combines versatility and mobility. Ideal for in-shop mold repair, tool refurbishment, and precision part welding, supporting a broad range of materials: tool steels, stainless, carbon steel, titanium, aluminum, copper, nickel, and more.
This advanced workstation seamlessly combines intelligent axis control, intuitive user interfaces, and robust laser technology to deliver clean, reliable welds on a wide variety of materials and workpiece configurations. Plus, with a built-in toolbox, the MobileFlexx ToolRoom is your one-stop shop for mold repair.
-
TECHNICAL DATA LWI V Nd: FSS 150 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 15 joule MAX. PEAK POWER 1,5 kW MAX. AVERAGE POWER 150 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 800 W DIMENSIONS 1200mm x 1627mm x 960mm -
TECHNICAL DATA LWI V Nd: FSS 300 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 30 joule MAX. PEAK POWER 30 kW MAX. AVERAGE POWER 300 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 1,2 kW DIMENSIONS 1487mm x 995mm x 790mm -
TECHNICAL DATA LWI V Nd: FSS 450 W LASER SAFETY CLASS 4 BEAM SOURCE FSS FullSolidState Fibrelaser, Diodes WAVELENGTH 1070 nm MAX. PULSE ENERGY 40 joule MAX. PEAK POWER 4.5 kW MAX. AVERAGE POWER 450 W ENERGY ADJ MODE Current VOLTAGE 10 – 100 % PULSE WIDTH 0,1 – 50 ms /cw PULSE FREQUENCY 1-100 hz PULSE FILL - PWM MODE 1-100% FOCAL LENGTH 190 mm BEAM DIAMETER 100 µm – 2mm, motorized beam-expander MICROSCOPE Leica binocular, oculars magnification 20x ILLUMINATION OF WORKPLACE Dual LED cold-light, switchable PARAMETER SETTINGS Memory 50 settings, individually named ENERGY MEASUREMENT SYSTEM Integrated CONTROLLER Multi-controller system, self-diagnostic system, plaintext for maintenance and status messages INTERFACE RS232, CAN-Bus SHIELDING GAS SUPPLY Flexible nozzle, adjustable gas delay COOLING SYSTEM Integrated, closed, temperature-controlled fan COOLIN OPTION - ELECTRICAL SUPPLY 1 phase, 90-250V, 50/60 hz POWER CONSUMPTION 1,2 kW DIMENSIONS 1487mm x 995mm x 790mm
